A Compact Rotational Post Driver.
This post driver was originally designed for the vineyard, orchard and landscaping markets however, due to its narrower base it’s also very popular with professional fencing contractors and farmers.
We have taken the same Revolution telescopic mast and put it on a compact form 220 degree rotational base. It’s a smaller rotational rammer that utilises different design principles to the Revolution Telescopic 180.
The compact form and ability to place the mast anywhere around 220 degrees is one of the huge benefits when fencing, this model offers flexibility at the pull of a lever.
Features.
Narrow 2.1m wide form will fit inside tight rows/spaces.
Will drive 4.2m pole
Slew from the tractor seat.
Carry machine weight behind either wheel for optimal balance in hill country.
Requires only 1 labour unit to operate whole package, only get off once.
Replaceable UHMWPE antiwear pads and bushes.
Sandblasted 2 pac paint.
Independent valve bank mounting.
Made in New Zealand.
Swinga - details & Specifications
Telescopic Mast
Hydraulic extendable mast
Vertical Mast height extended 5.4m
Vertical Mast height compacted 3.3m
Mast pulls out posts/strainers
Will drive to ground level
Rotational Base

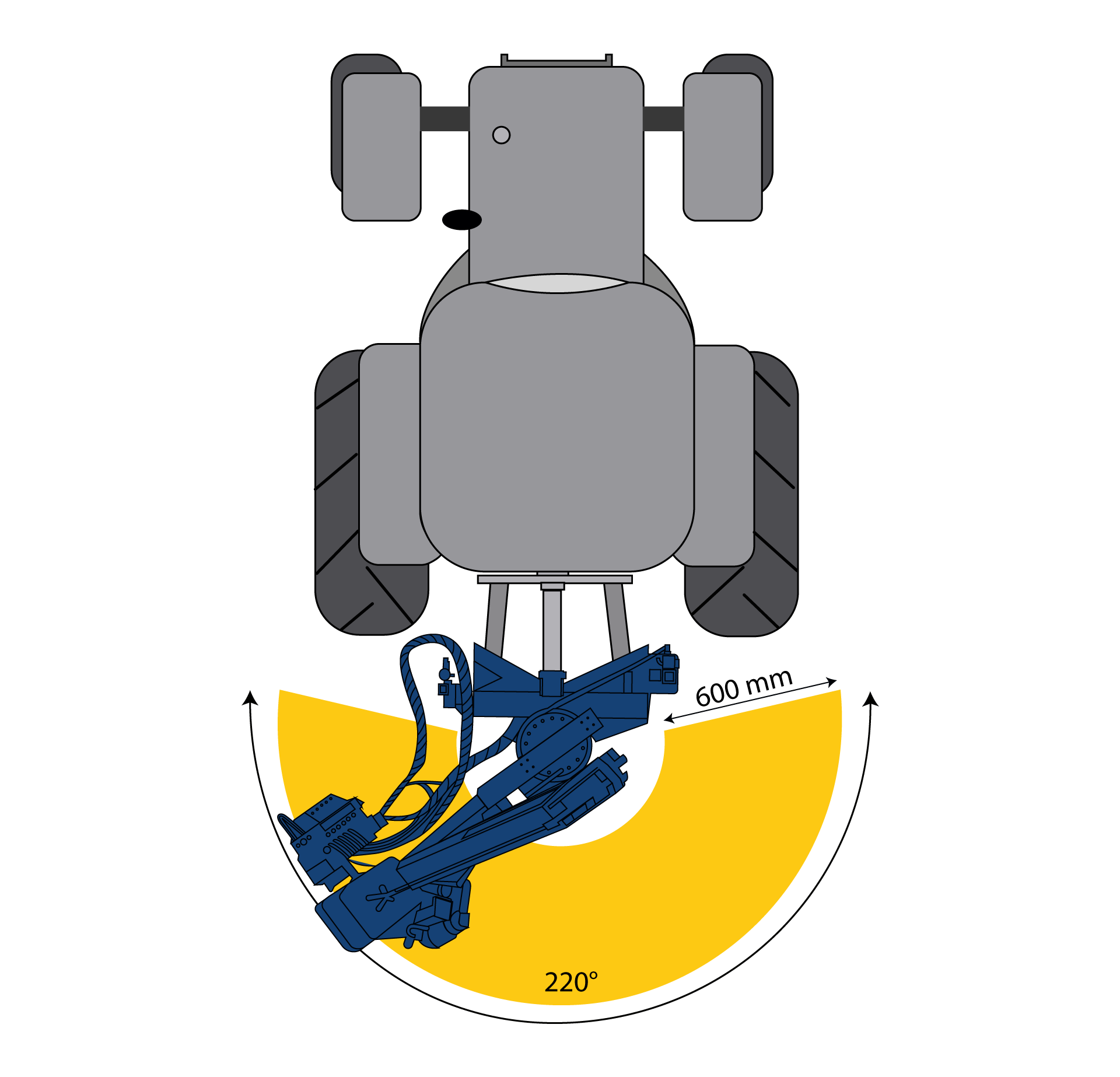

220 degree rotation
600 mm side shift
Reach from rear tractor wheel 2.3m
Versatile with the ability to be mounted to tractor, skid steer, excavator, track machine and bulldozer.
Options
Hydraulic legs.
300kg hammer STD, heavier available.
Automated Auger kit.
Modified augers.
Automated Rock Spike kit.
90mm & 100mm Rock Spike.
Rock Spike post cap.
wATCH THE VIDEO
Telescopic Swinga - Frequently Asked Questions
What advantages does the Swinga have over the 180?
The Swinga was originally designed for the landscaping and vineyard markets with a narrow base to accommodate access requirements. Therefore the Swinga can get into very narrow situations. The Swinga has also been popular with Fencing Contractors and Farmers with one of the reasons is this post rammer can also go onto a smaller tractor 70 hp plus, so some have purchased because it means they don’t have to upgrade their tractor size.
Get in touch.
Revolution Swinga Videos
Video Testimonial.
Bob Vernon - Vernon Farms
“Using it is the only way to discover how advanced it is. It just keeps going! Your imagination… it just exceeds that. It just keeps going. ”
- Bob Vernon
Watch The Swinga In Action.

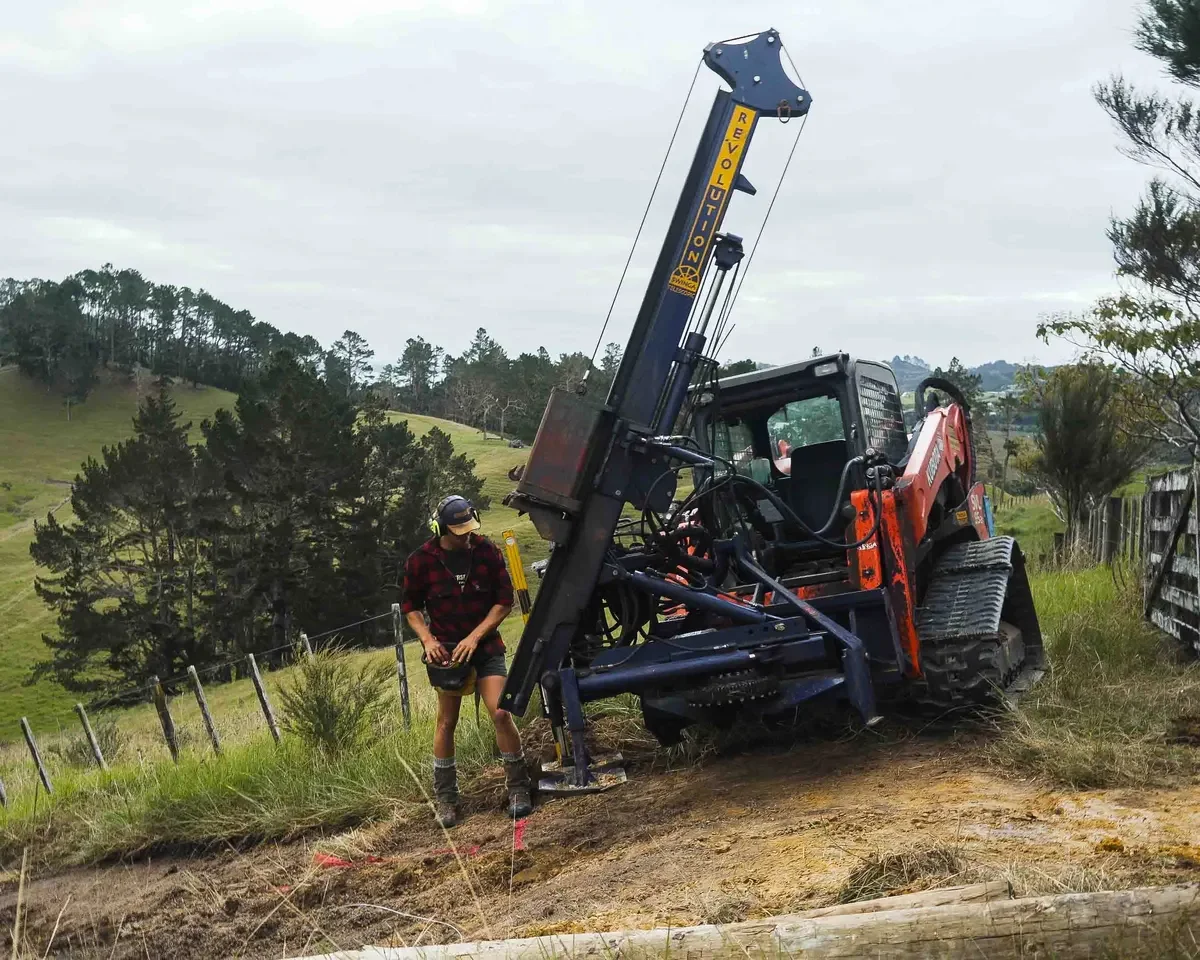

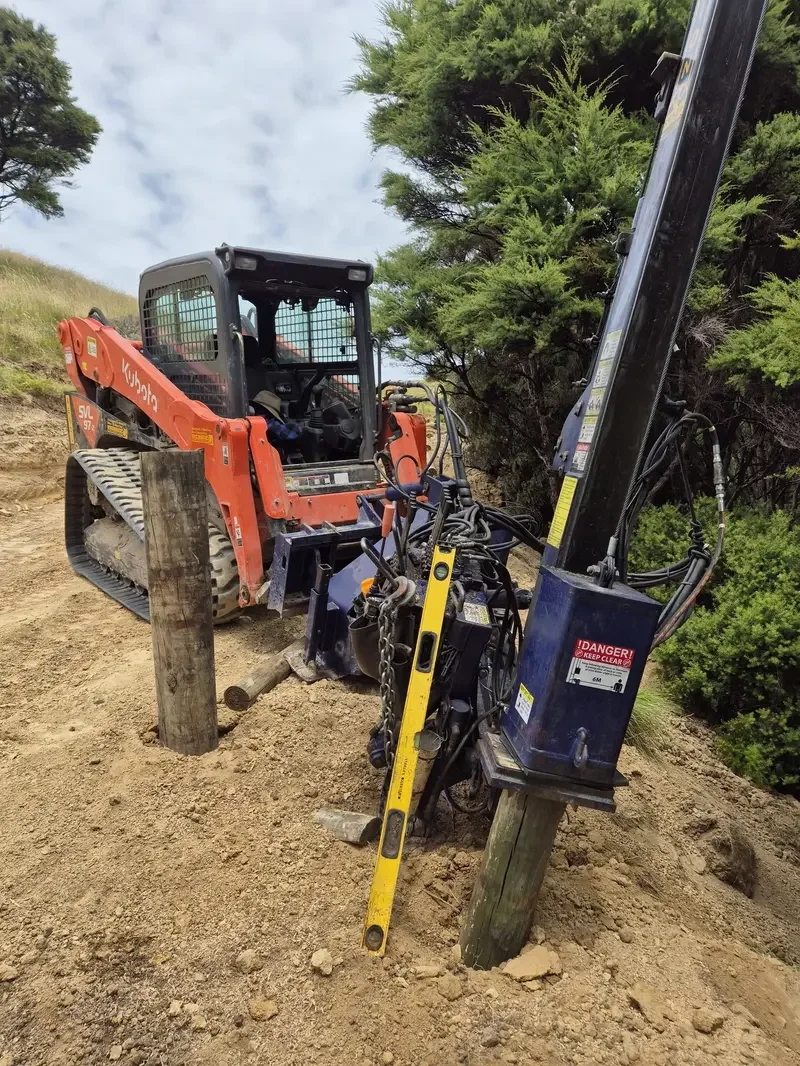

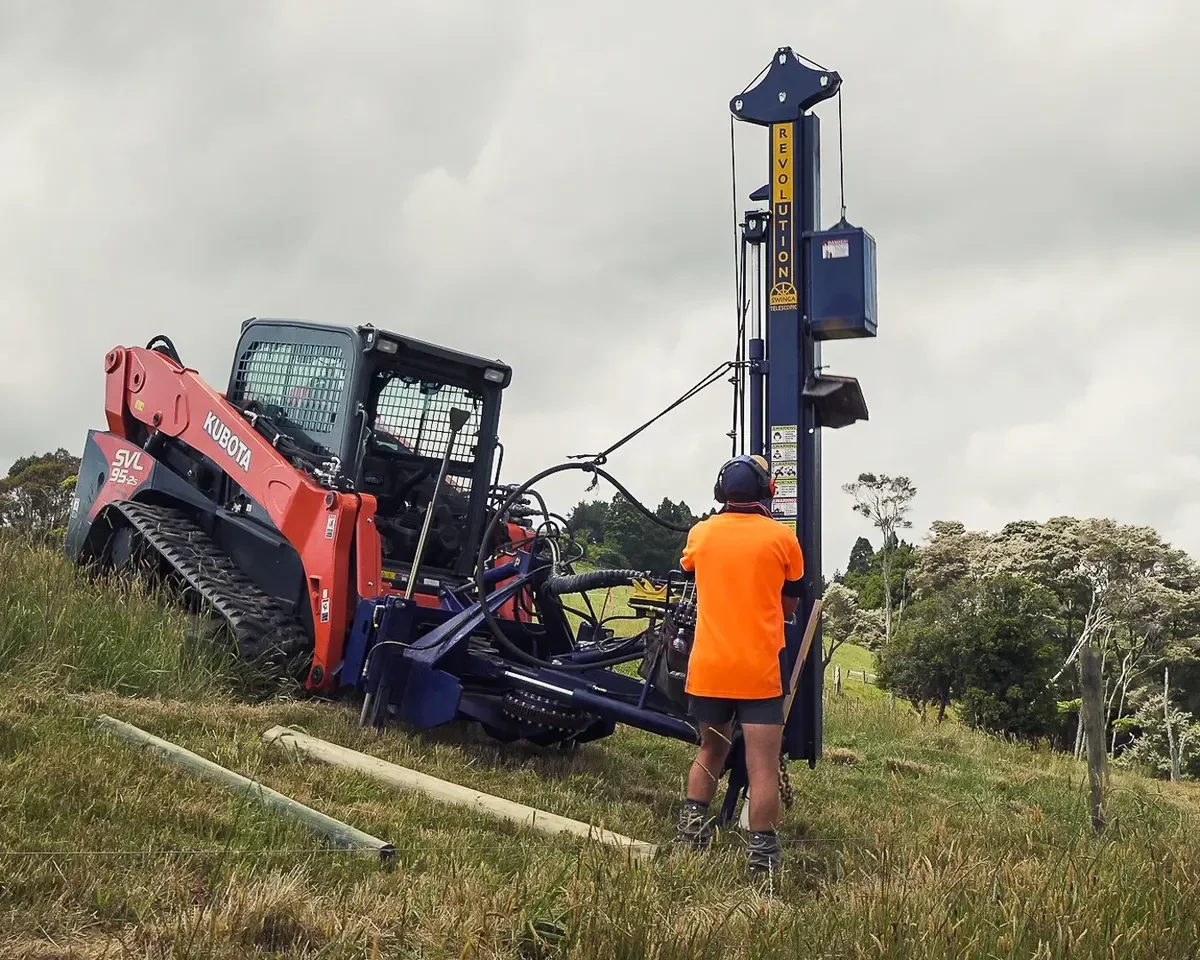

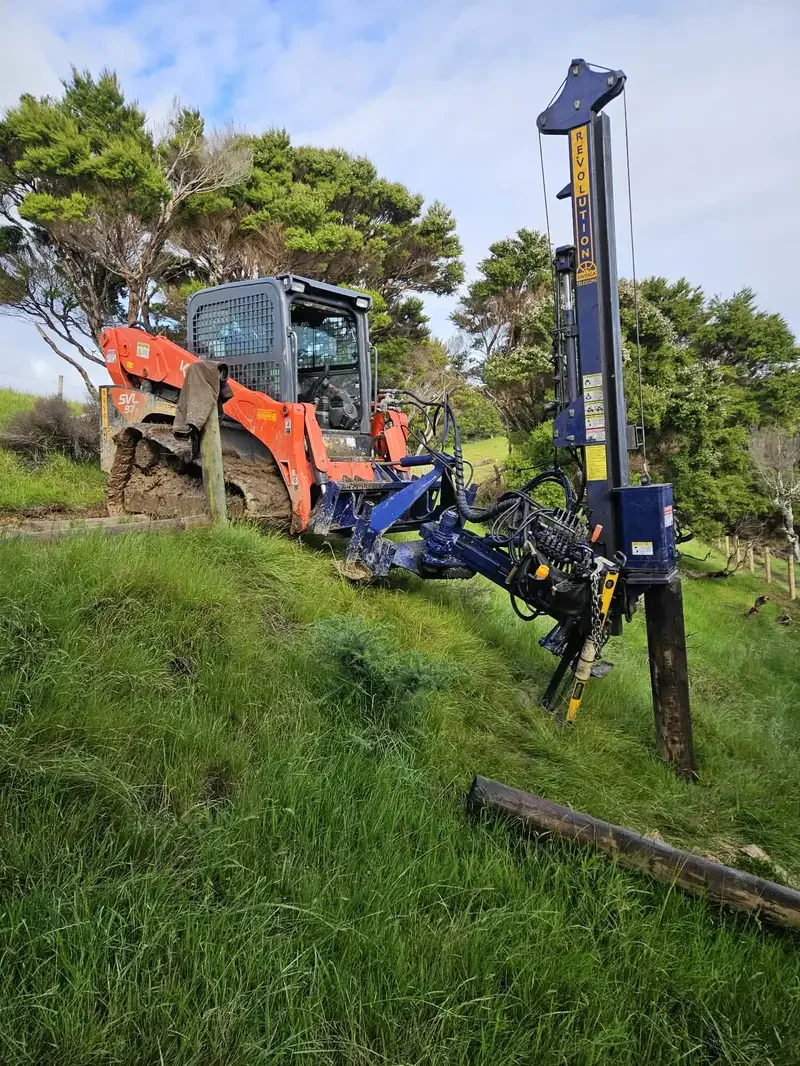

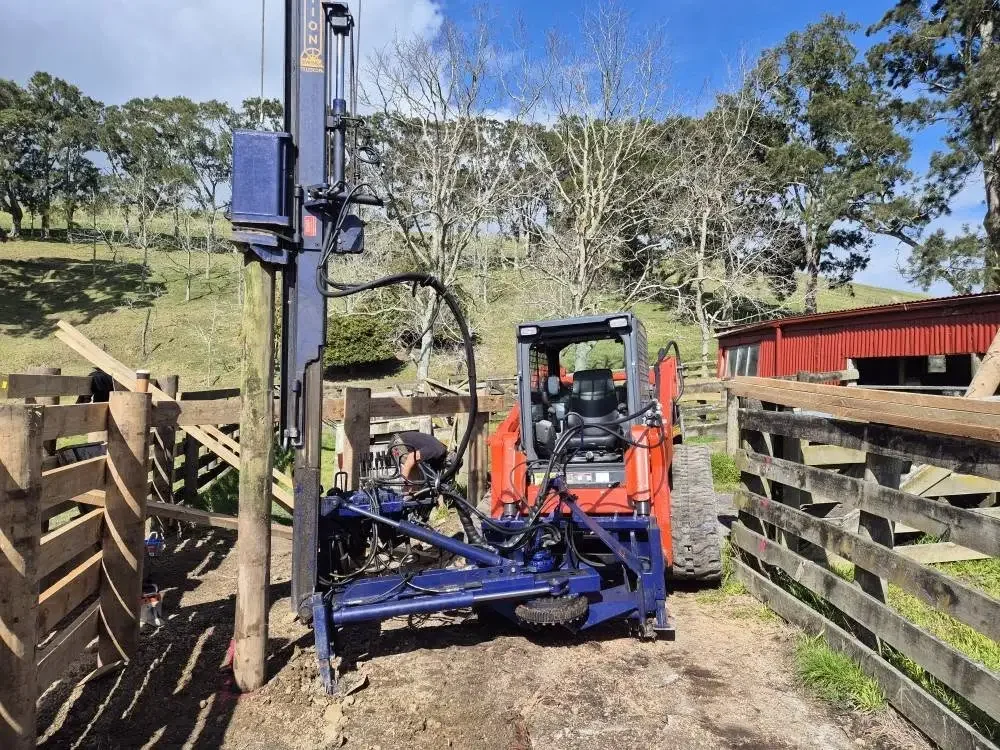

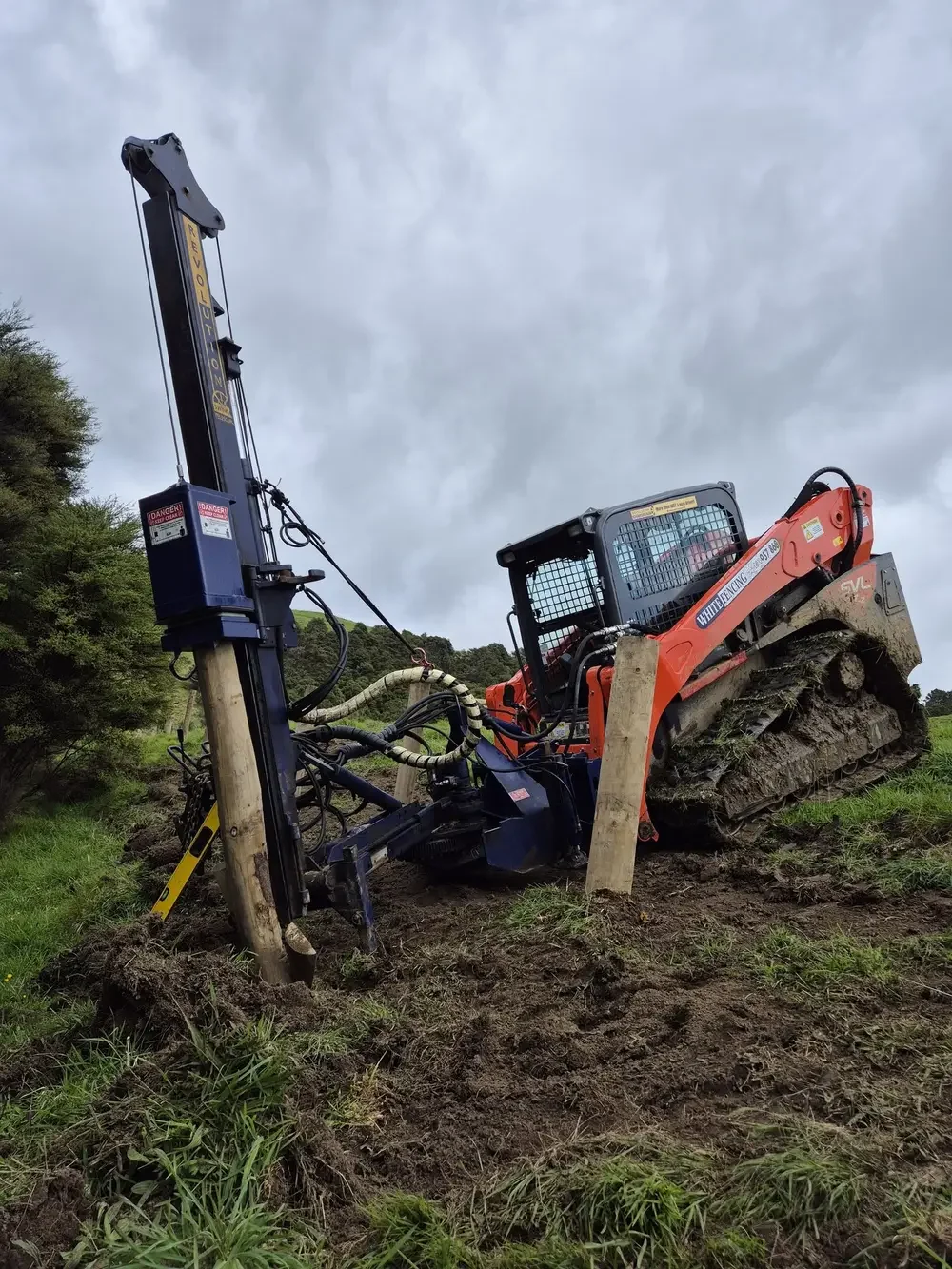

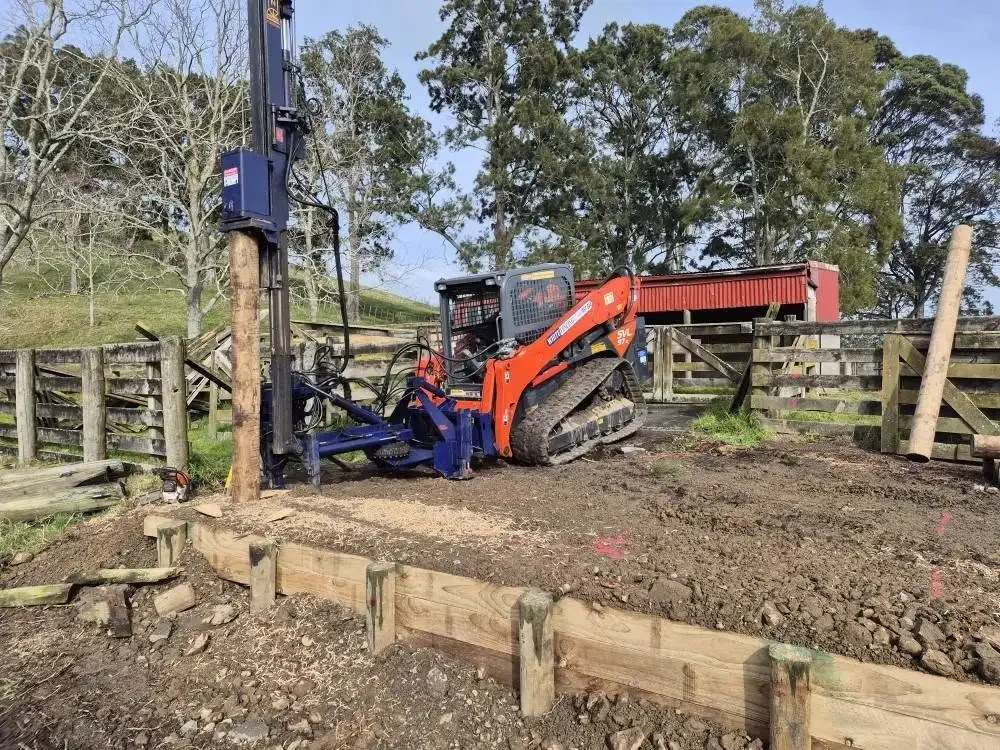

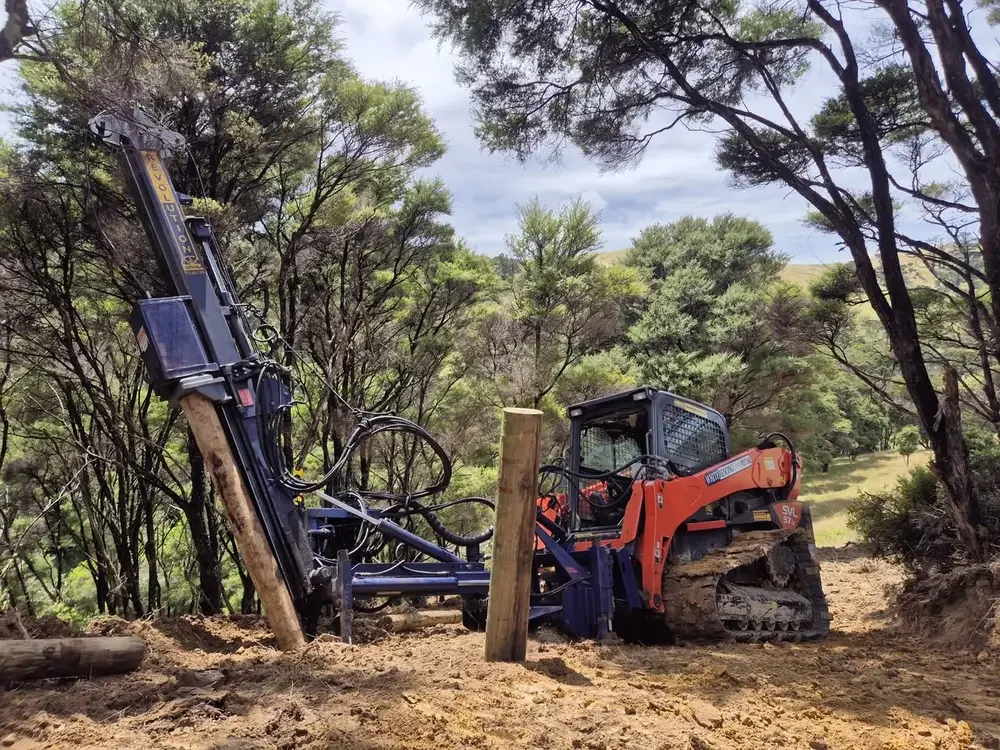

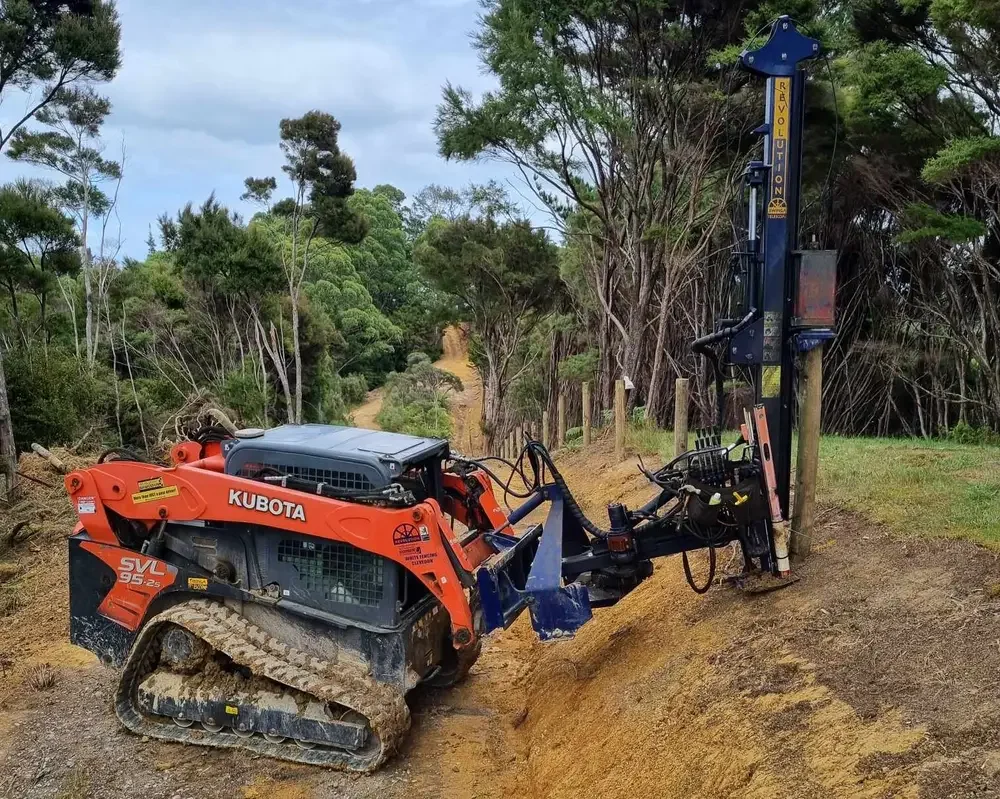

The remote controlled skid & Revolution SWINGA post driver combo is a highly versitile machine option. A great choice for vegetation and fenceline clearing. Attachment changeover can be completed in less than one minute.
Revolution Rammer Features
Revolutions Telescopic Mast
Telescopic Mast

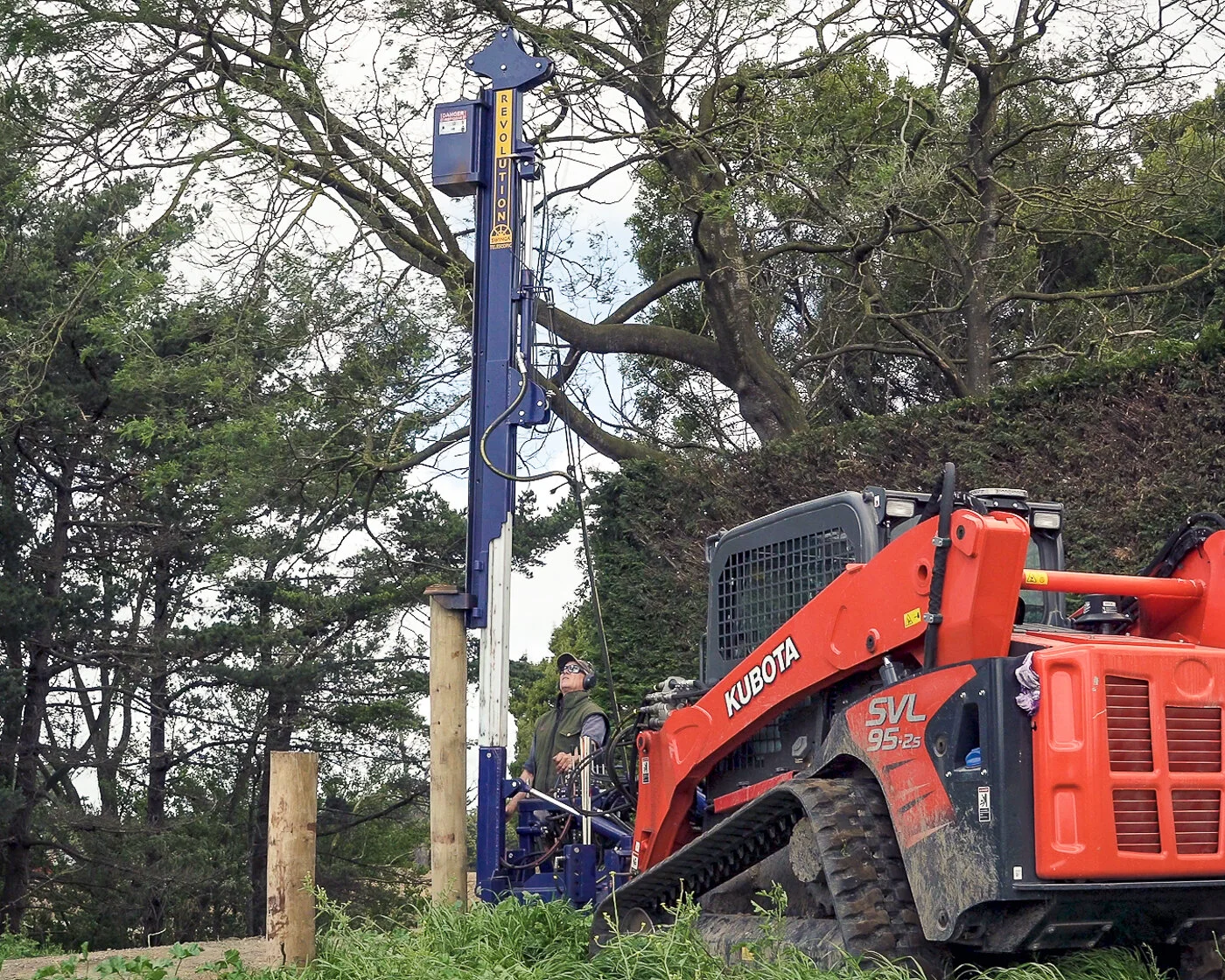

Revolutions telescopic mast will comfortably drive in a 3.6m strainer, and will still drive a 4.2m. The mast will drive right down to ground height for footing.
Post Pulling.
Our telescopic mast will pull out posts and strainers without needing to move the mounting machine around. Simply attach a chain and you can pull up to 7.2 Tons.
Compactness.
Revolutions telescopic mast packs down to a total height of only 3.2m vertical. This means that you can ram posts inside sheds, underneath trees as well as travelling safely underneath power lines.
Postdriver Accessories
Hydraulic Legs.
No ground is ever flat. Use the hydraulic legs to perfectly balance and stabilise the mount to ensure straight posts and reduce mechanical stress on the unit.
Rock Spike.
Our rock spikes come in two sizes to handle all types of terrain across New Zealand. The rock spike kit fits directly into the mast and extracts the driven spike.
Auger Kit.
Revolution offer three auger motor types, including two planetary motors for heavy-duty drilling. The Auto Auger kit fits directly to the telescopic mast.
